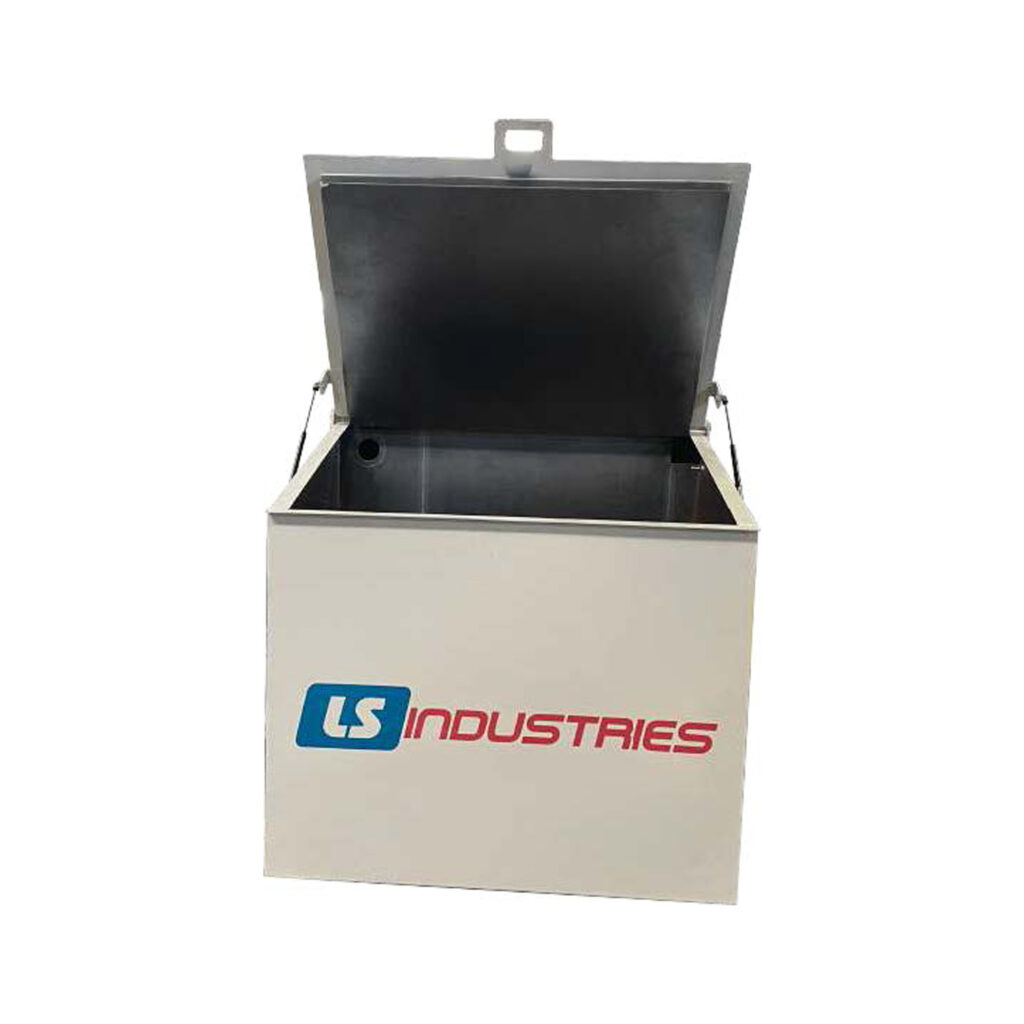

DT-2 – Dip Tank

The LS Industries DT-2 Dip Tank is engineered for batch coating up to 14 brake shoes at a time, offering a safe, efficient, and consistent solution for applying protective or bonding coatings. Ideal for remanufacturing and production facilities, the DT-2 combines ease of use with industrial-grade durability.

Featuring an air-operated door with a safety lid, the DT-2 ensures safe and hands-free operation. The integrated water jacket with two 6kW heating elements maintains optimal temperature for uniform coating results, while the easy-to-use controls and adjustable loading timer simplify operation without requiring extensive training.

Key features include:
- Batch capacity for up to 14 brake shoes
- Air-operated safety door for secure, automated access
- NEMA-12 electrical enclosure for dust-tight, industrial protection
- UL and CSA listed electrical components for certified safety and compliance
- Includes operation manual and parts list for straightforward setup and maintenance

The LS DT-2 Dip Tank is the ideal solution for precision coating of brake shoes, delivering consistent results with minimal operator effort and maximum reliability.

Why Choose LS Industries?

Customer Service
Global Network
Warranty on all work

Speak to a Sales Engineer

800-835-0218

Features & Options

Tank Dimensions:
48" w x 44" d x 46" h
Work Area:
48" x 32"
Solution Capacity:
60 Gallons
Tank Construction:
10-gauge mild steel
Electrical:
480V/3PH/60HZ, approximately 60 Amps
