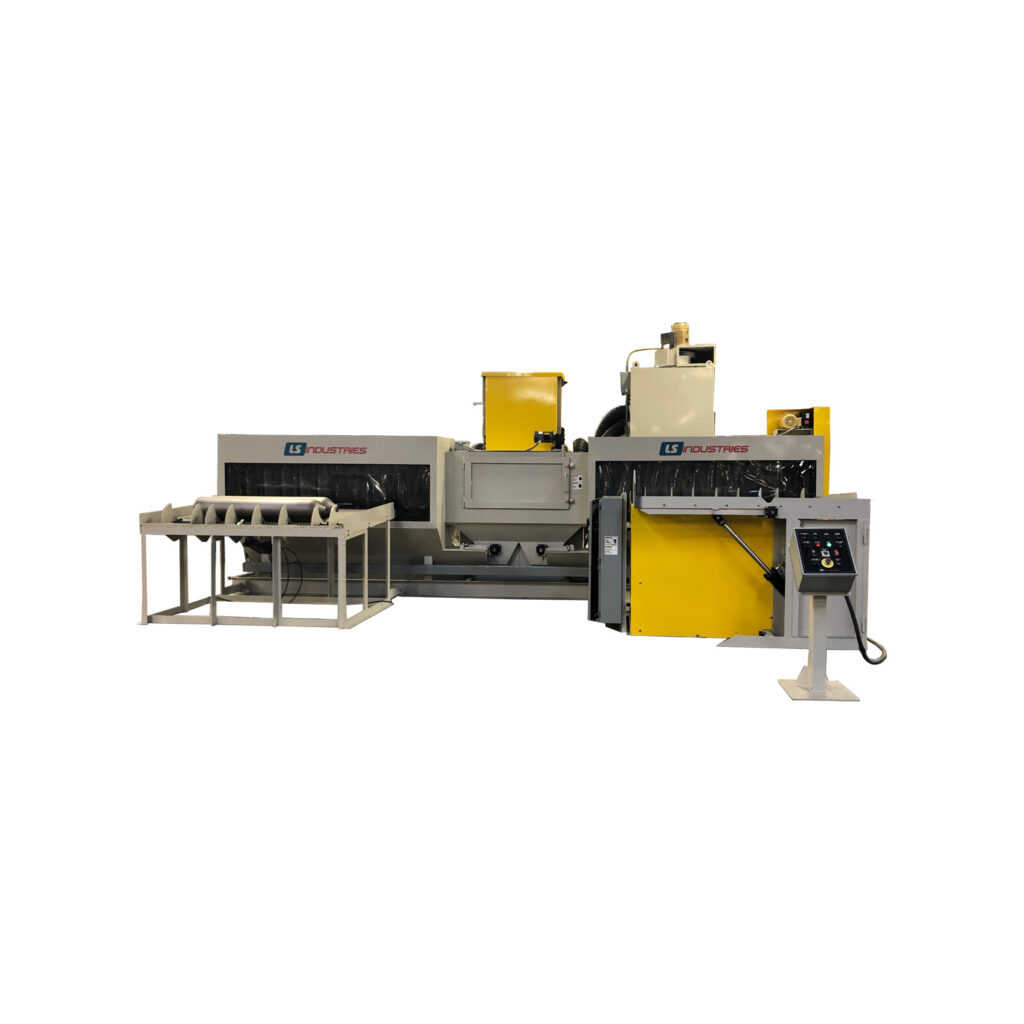

BFC-XL – Cylinder Blaster

The LS Industries BFC-XL Flow Through Cylinder Blaster is engineered for high-production blasting of welding gas and high-pressure gas cylinders with maximum speed and efficiency. Built with a rugged all-steel frame and cabinet construction, this machine is built to perform under demanding industrial conditions.

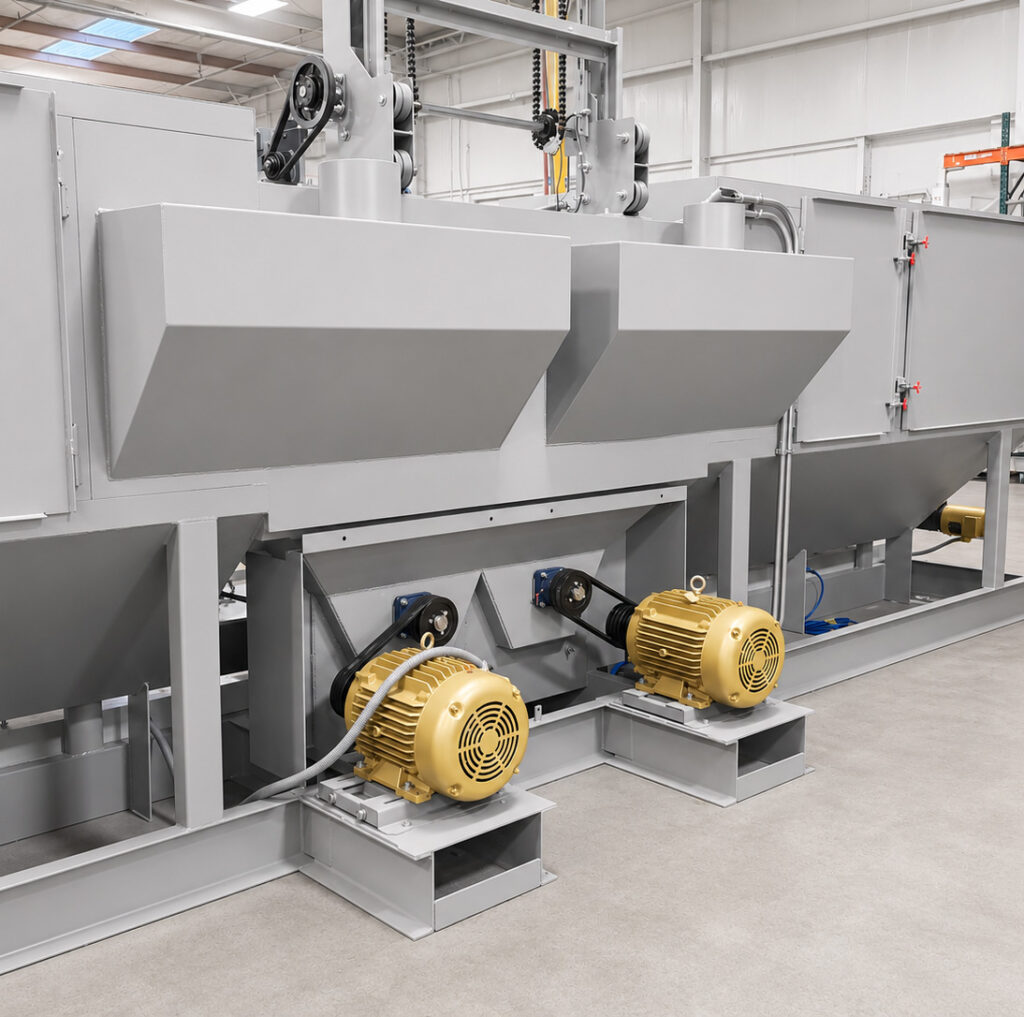

Equipped with two 15HP LS SureShot direct drive under-throw impeller wheels, the BFC-XL delivers a powerful, bi-directional blast pattern that ensures complete, all-angle coverage. Each blast cycle processes up to 5 cylinders at a time, thanks to indexing infeed and outfeed tables, dramatically increasing throughput while maintaining consistent quality.

Key performance and durability features include:
- Sealed impeller bearings for superior resistance to abrasive wear

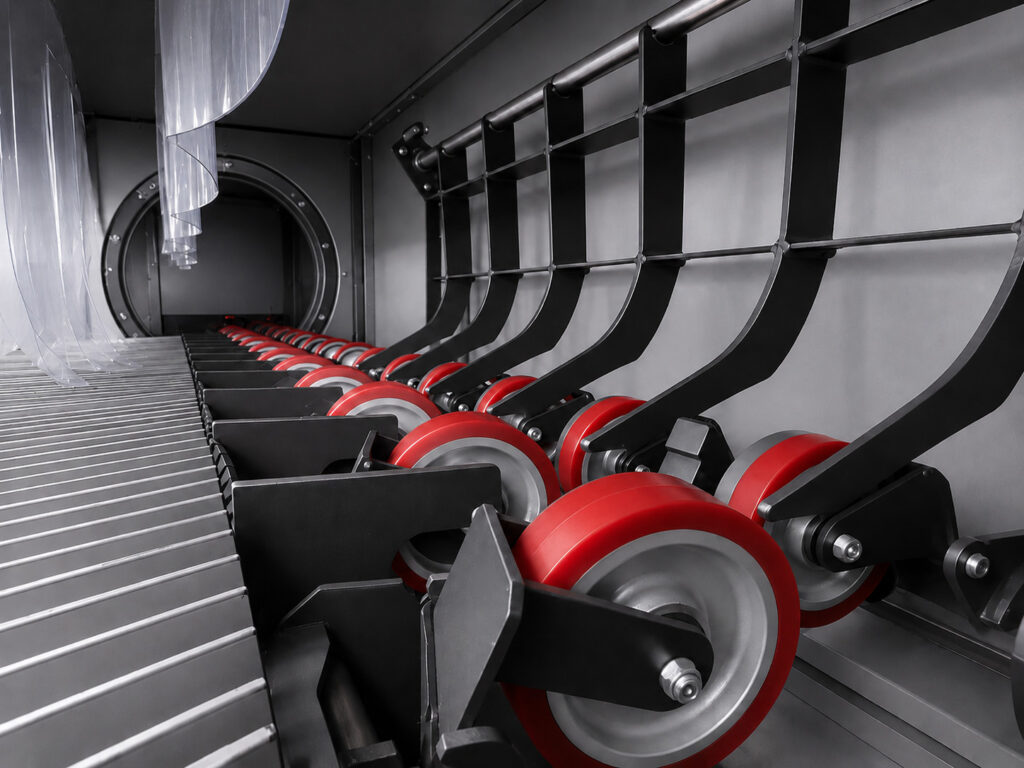

- Replaceable conveyor roller wheels to extend machine life

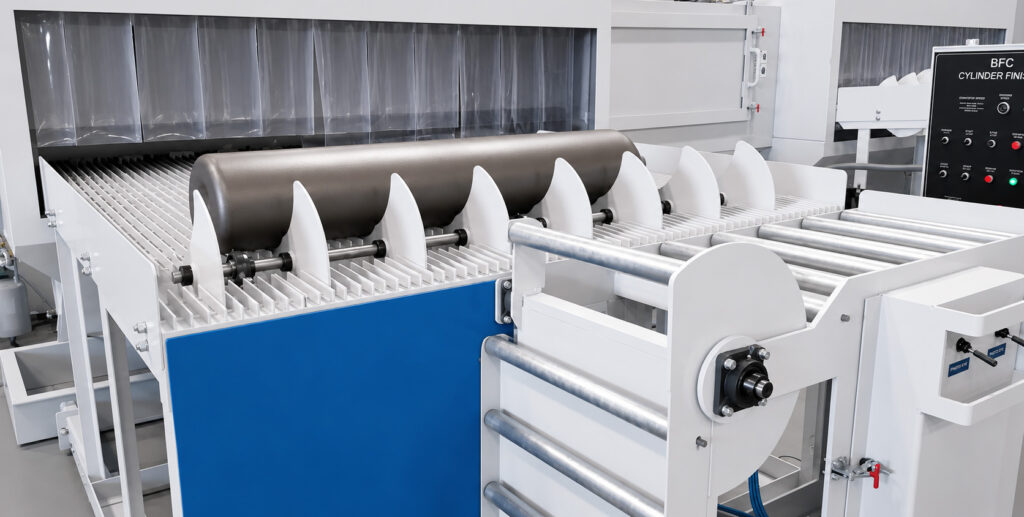

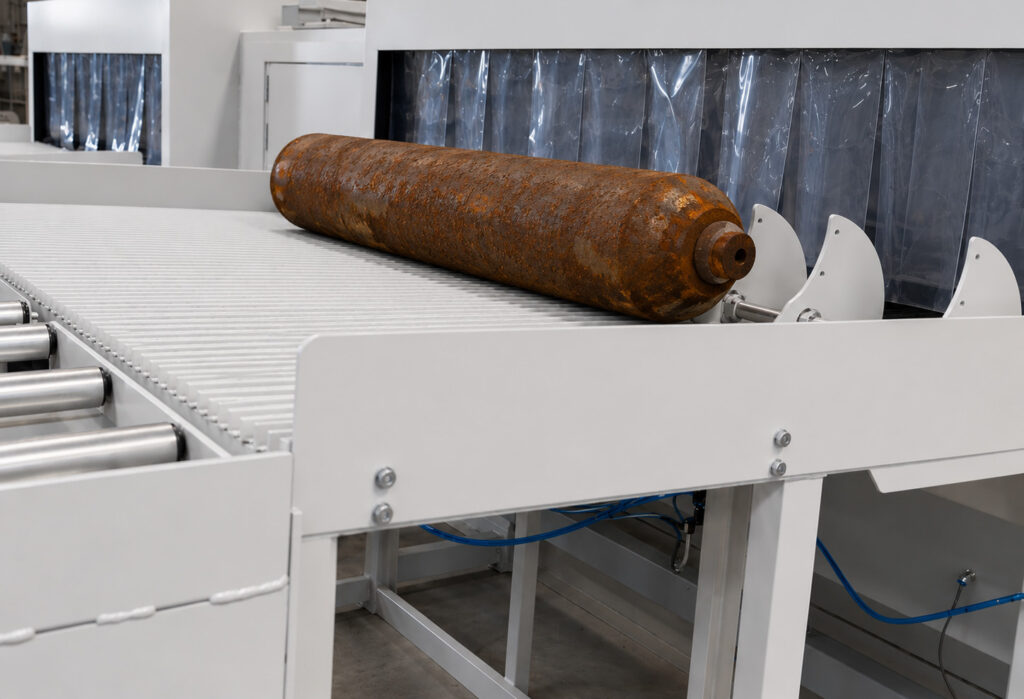

- Entrance and exit vestibules for effective media containment
- Full load of steel shot abrasive media included for immediate operation
- Easy-access doors for simplified inspection and maintenance

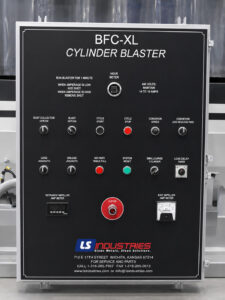

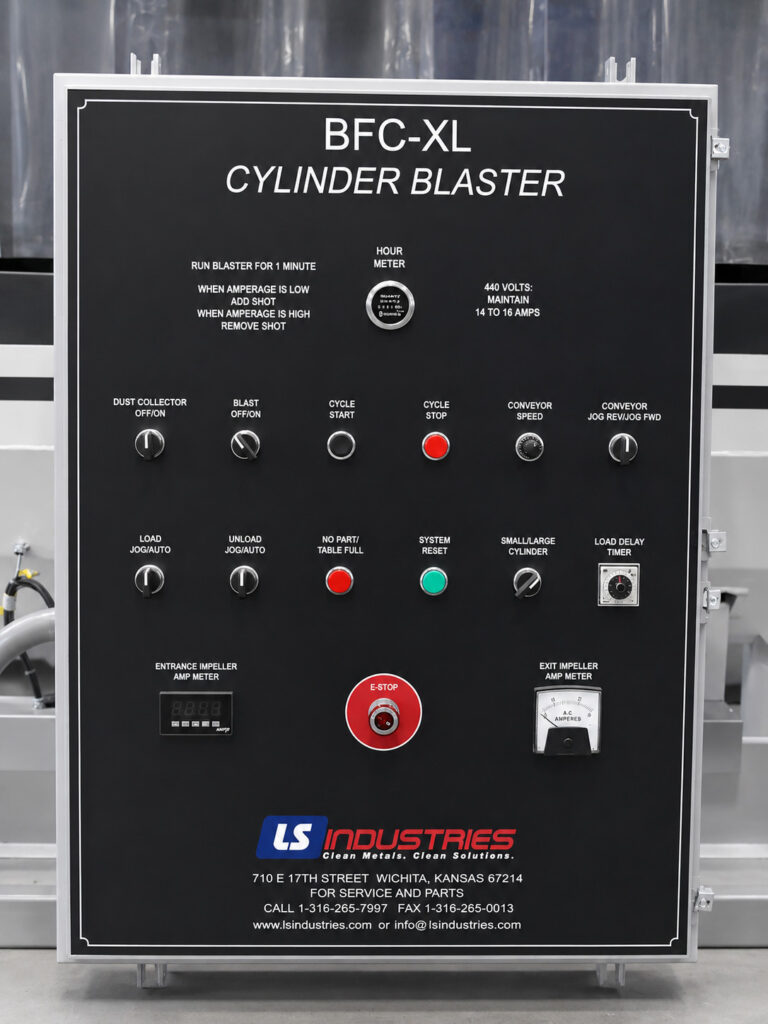

- User-friendly controls with an adjustable loading timer

From its high-capacity blasting system to its low-maintenance design, the BFC-XL is the ideal solution for facilities needing fast, reliable, and thorough cleaning of gas cylinders.

ADDITIONAL OPERATING REQUIREMENTS: The conveyor system is designed with rollers spaced approximately 8" center-to-center. To ensure proper support and stability, each cylinder must remain in contact with at least three rollers at all times—meaning the minimum cylinder length (contact surface) should be at least 24".

Why Choose LS Industries?

Customer Service
Global Network
Warranty on all work

Speak to a Sales Engineer

800-835-0218

Features & Options

Work Envelope:
5.5" - 18" diameter
Overall Dimensions:
288" w x 150" h x 88" d
Number of Blast Wheels:
2 - 15HP
Conveyor Roller Spacing:
7"
Electrical:
220V or 440V/3PH/60HZ
Dust Collector:
DCC-5-A
