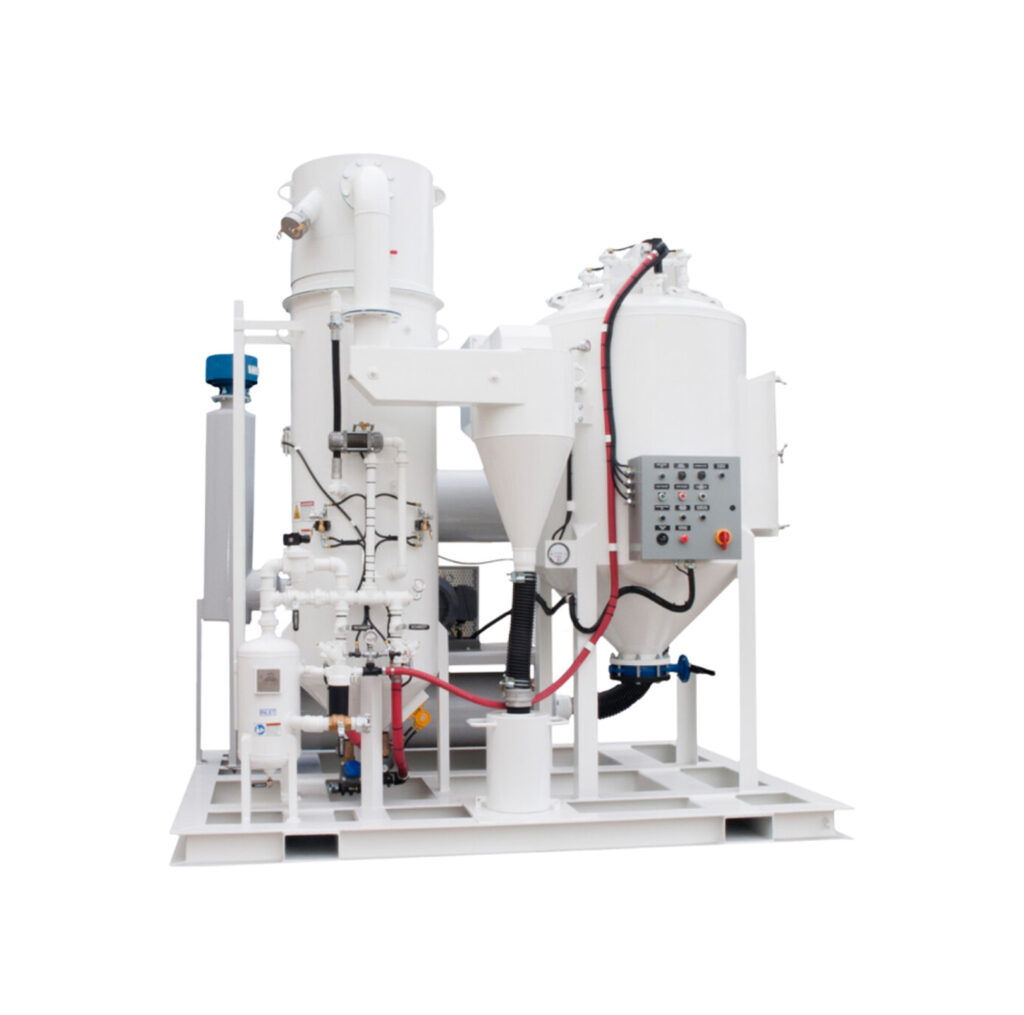

LS Industries Skid-Mounted Blast System – High-Performance, ASME-Certified Pressure Vessel Blasting Unit
Engineered for industrial-grade abrasive blasting, the LS Industries Skid-Mounted Blast System combines a 13.5 CF ASME Section VIII coded pressure vessel with a complete media recovery, air management, and dust collection system. Designed for power, efficiency, and ease of maintenance, this all-in-one blasting unit delivers reliable performance in the most demanding environments.
At the core is a 30” diameter pressure vessel, rated for 150 psig, with a 90° cone bottom, standard Schmidt 4” pop-up, and twin 6” x 8” handways for easy access and service. Blast operations are controlled through dual 1-1/2” polyurethane-sleeved valves, paired with automatic air valves and union end ball valves, ensuring precise flow control. Operators benefit from pneumatic deadman controls and a combo valve blowdown system for fast depressurization and safety.
Blast Controls & Pressure Vessel Highlights:
- 13.5 CF, 30ӯ ASME Section VIII coded pressure vessel
- Rated for 150 psig with 90° cone bottom
- Schmidt 4” pop-up with spider for dependable media flow
- Twin 6” x 8” handways for access and cleanout
- (2) 1-1/2” blast valves with polyurethane sleeves
- Automatic air valves with union end ball valves
- 55’ pneumatic deadman twinline control
- Combo valve blowdown for rapid depressurization
Hopper / Reclaimer System:
- 10.5 CF media hopper above pressure vessel
- Turnbuckle hold-down with 30” plate flange cover
- Vibrating screen with 1/4" perforation for media separation
- Fixed air wash for consistent media recycling
- 10” spider pop-up and 6” screen access doors for service
High-Efficiency Secondary Cyclone:
- 20ӯ rectangular entry for smooth airflow
- 60° cone bottom with 4” camlock drain
- Reduces dust load on primary collector for longer filter life
Dust Collector System:
- 48”Ø vessel with 90° cone bottom
- Four-cartridge configuration with included paper filters
- 8ӯ dust drain with butterfly valve
- Automatic pulse cleaning with Goyen valves (120VAC)
- Magnehelic gauge for filter performance monitoring
- Easy-access 23” x 30” cartridge door
Integrated eductor (550 CFM) with blower silencer (~85 dB)
Additional Features:
- Inlet air moisture separator for dry operation
- Skid-mounted with side fork pockets for easy transport
- Standard Schmidt blast priming and white paint finish
Note: Blast hoses, vacuum hoses, and accessories sold separately.
The LS Skid-Mounted Blast System offers a complete, self-contained abrasive blasting solution that’s engineered for high throughput, durability, and safety, making it ideal for on-site jobs, industrial maintenance, or shop-based applications.
